Product Description

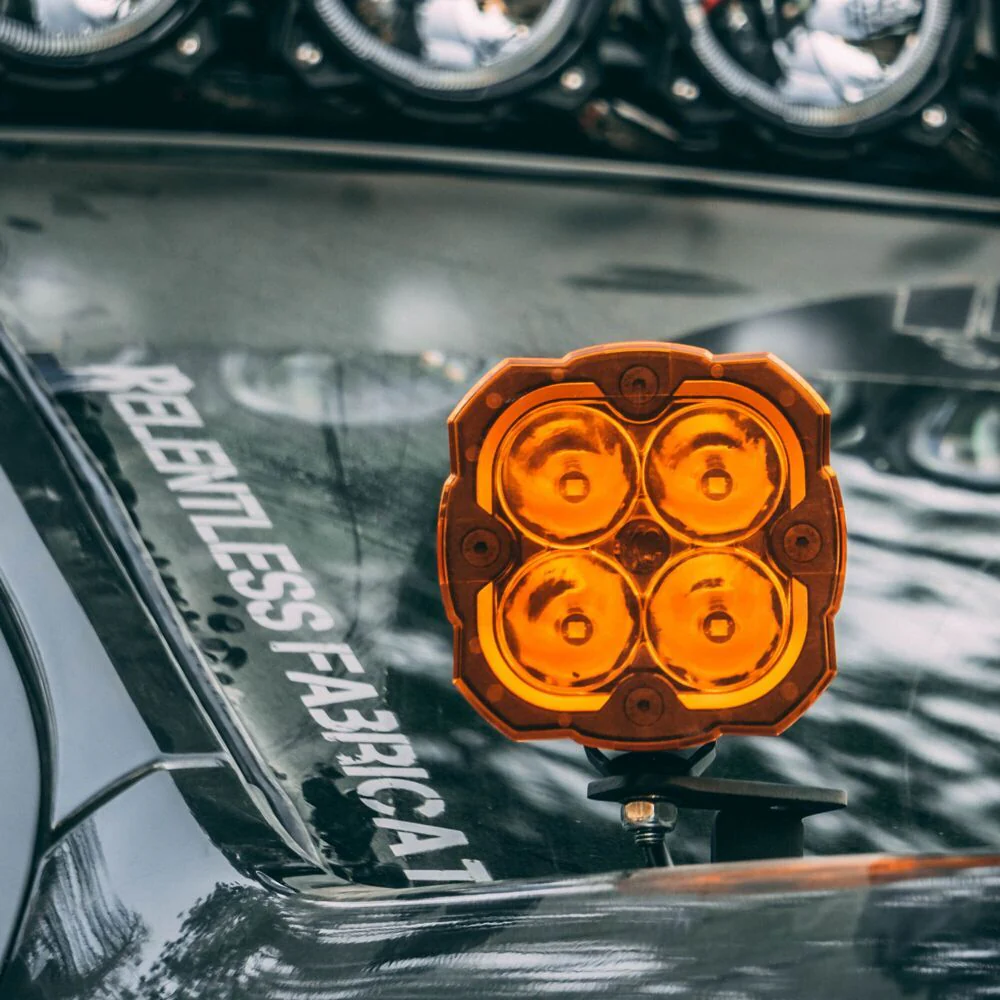

We've amped up the versatility of the KC FLEX ERA^® 1 LED Light Pods by including every beam pattern lens you'd want to be able to mount this light in any nook and cranny you can find. From the front, tucked just behind the changeable colored bezels, sits the clocked lens that allows you quickly change between spot, spread, and flood beam patterns. A patented FLEX ERA^® 1 LED Light Pod housing with intricate and flowing heat sink fins and compact overall size makes it a party from the front or the back. The FE1 is built to be mounted anywhere you need it, throwing light out forward, sideways, or backward.

Fitment Notes

Fits Tacoma (2024+) with vehicle specific ditch light brackets: Shop brackets here
Fits Tundra (2022+) with vehicle specific ditch light brackets: Shop brackets here
Fits Sequoia (2023+) with vehicle specific ditch light brackets: Shop brackets here
Fits 4Runner (2025+) with vehicle specific ditch light brackets: Shop brackets here
Fits 4Runner (2010-2024) with vehicle specific ditch light brackets: Shop brackets here

Included

FLEX ERA^® 1 LED Light Pod with Right-Hand Bracket (1)
1 - FLEX ERA^® 1 LED Light Pod with Left-Hand Bracket
2 - Spread Beam Lenses (pre-installed)
2 - Flood Beam Lenses
2 - Spot Beam Lenses
2 - Light Covers - Black with Yellow KC Logo
2 - Lens Replacement O-Rings
1 - Complete Plug-N-Play Wiring
Harness with LED Switch

Specs

Wattage Per Light: 5W / 23W
Total Wattage: 10W / 46W
Amp Draw Per Light: 0.42 a / 1.92 a
Total Amp Draw: 0.83 a / 3.83 a
Voltage: 9V-36V
Lumens Per Light: 2430 lm
Total Lumens: 2431 lm
Lux Per Light: 45.1 lx (flood) / 162 lx (spread) / 310 lx (spot)
Total Lux: 45.1 lx (flood) / 162 lx (spread) / 310 lx (spot)
Candela Per Light: 4510 cd (flood) / 16200 cd (spread) / 31000 cd (spot)
Total Candela: 4511 cd (flood) / 16200 cd (spread) / 31000 cd (spot)
Light Temp: 5000 K
Lens Color: Clear
LED Color: Amber / White

Product Features

Master Kit includes all Beam Pattern Lenses:
- Pre-assembled in Spread Beam
- Flood Beam Lenses
- Spot Beam Lenses
Two Power Modes for Style and Performance
- Amber LED Backlight
- Full Power (off-road use only)
Mountable right side up, upside-down, or sideways with the asymmetric bracket design
Customizable Machined Bezel Colors (sold separately)
Thermal LED Protection
IP68 Rated
